Hotdive STS Scuba Regulator Sidemount Set - Technical Diving

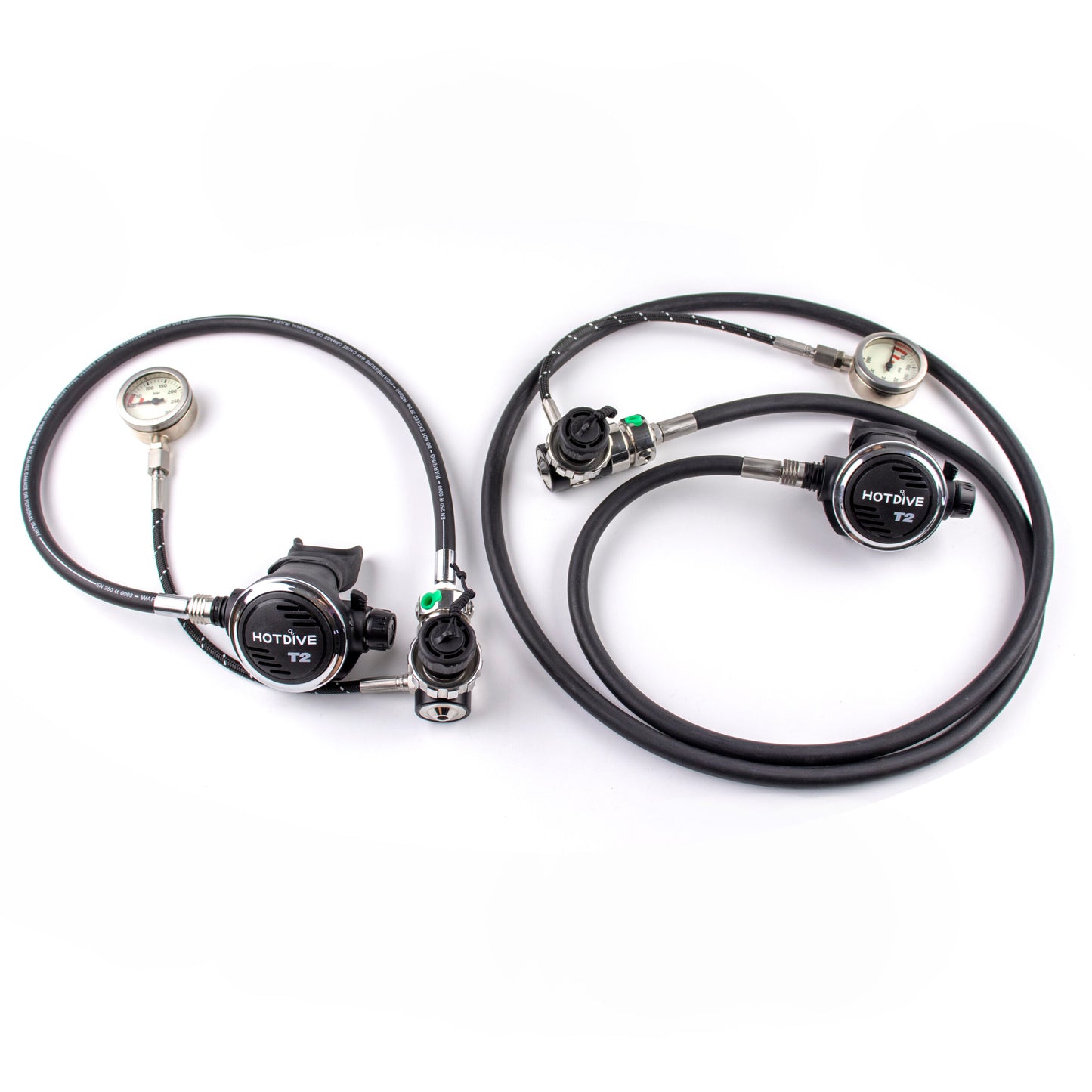

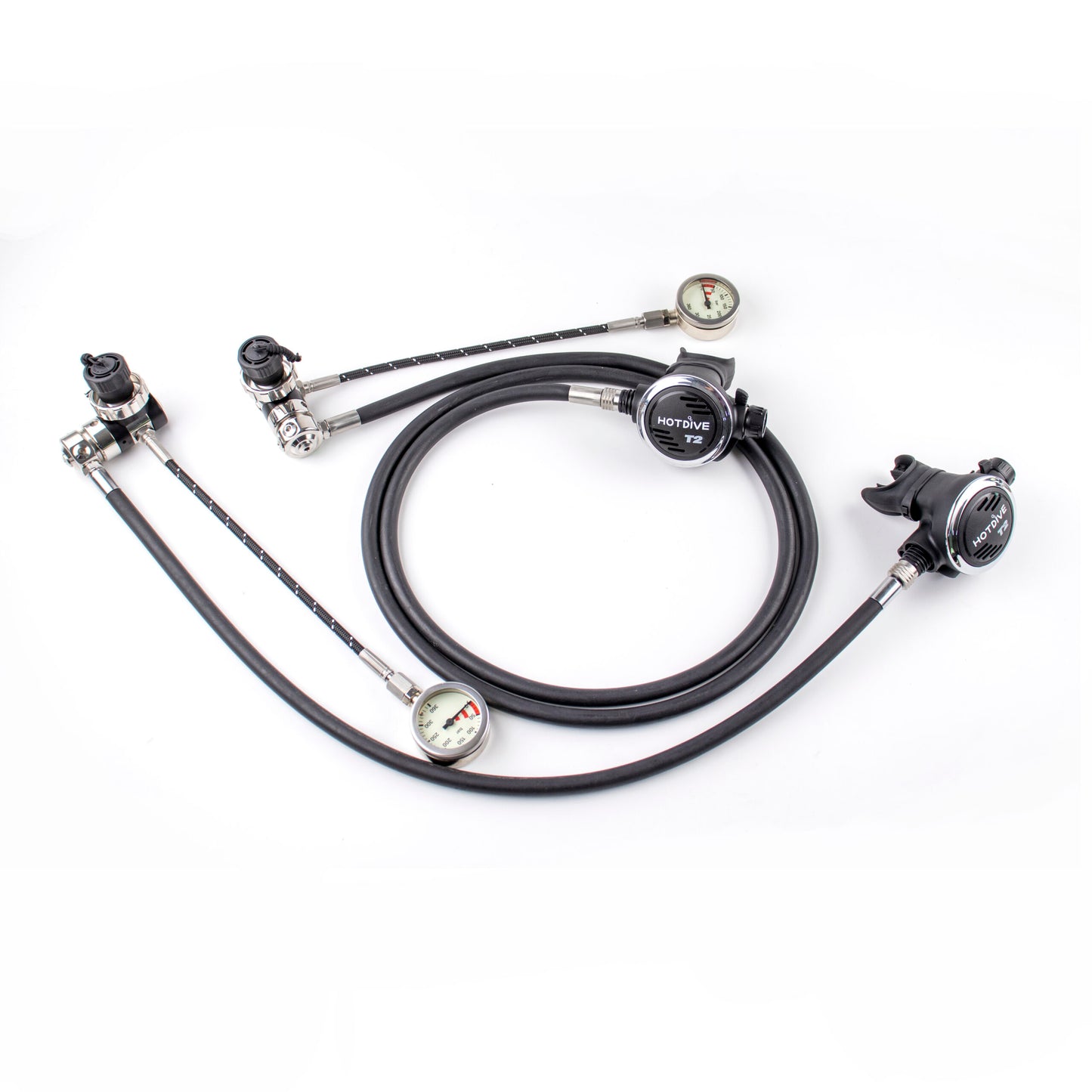

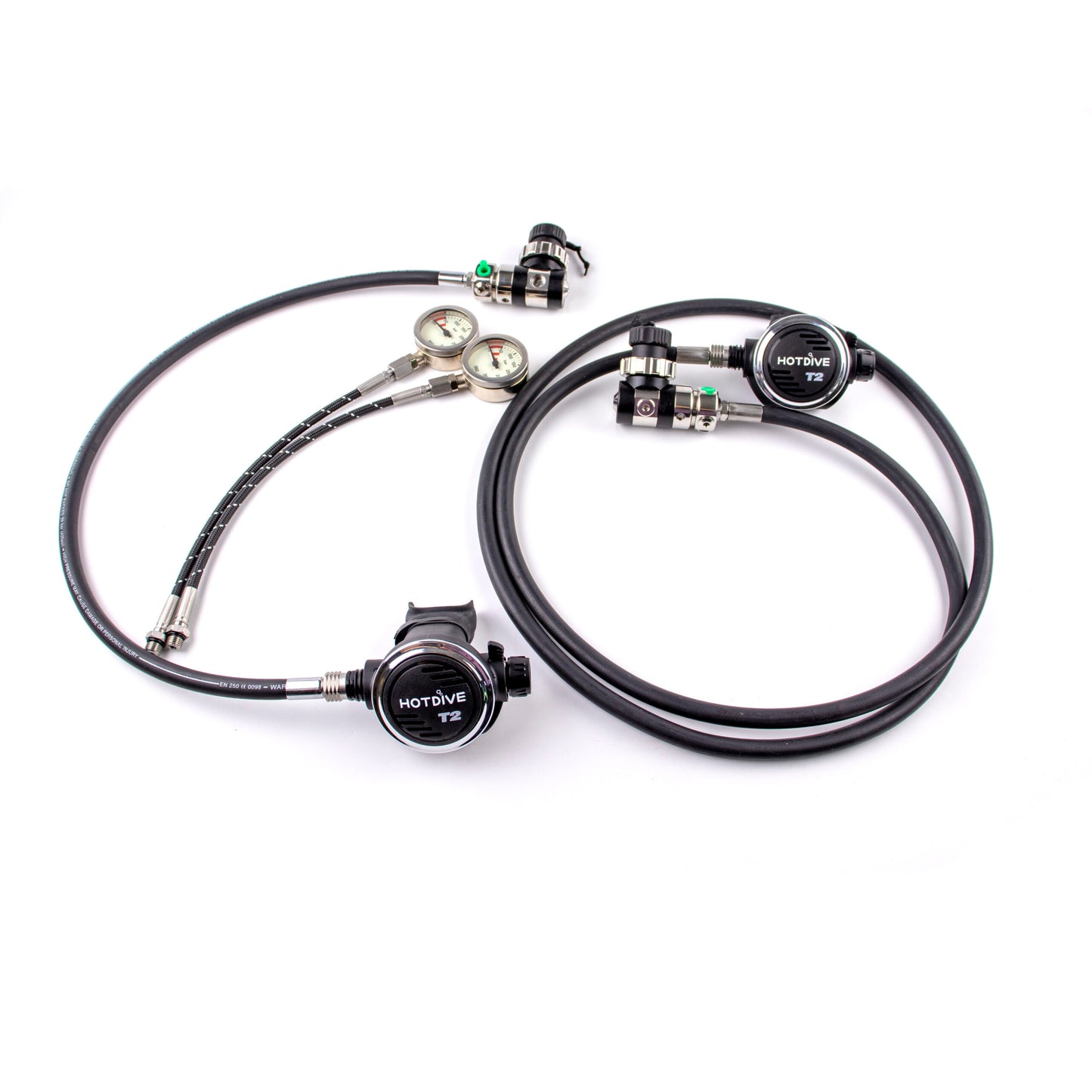

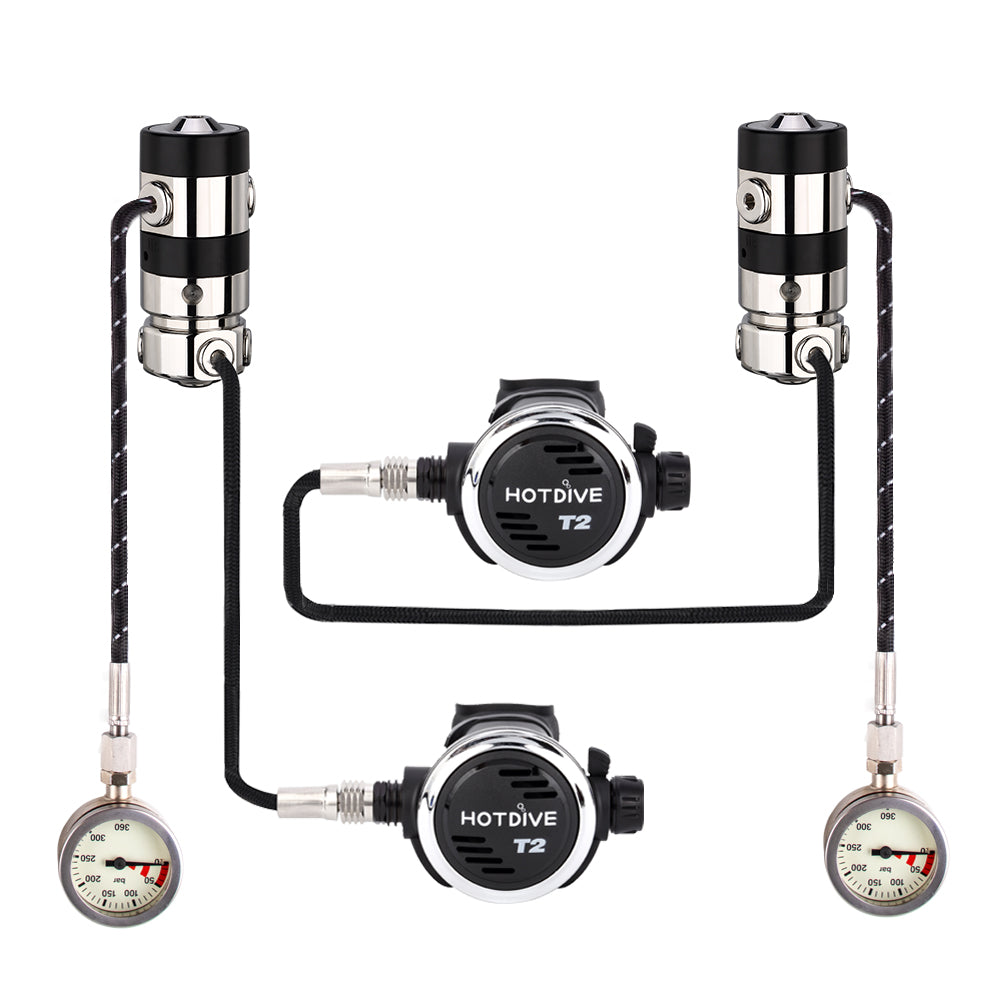

ST2 + OCTO + SPG SET

• S2 First Stage x 2

• T2 2nd Stage x 2

• 52mm SPG x 2

• 0.61m LP braided hose

• 2.1m LP braided hose

• HP 15mm for SPG

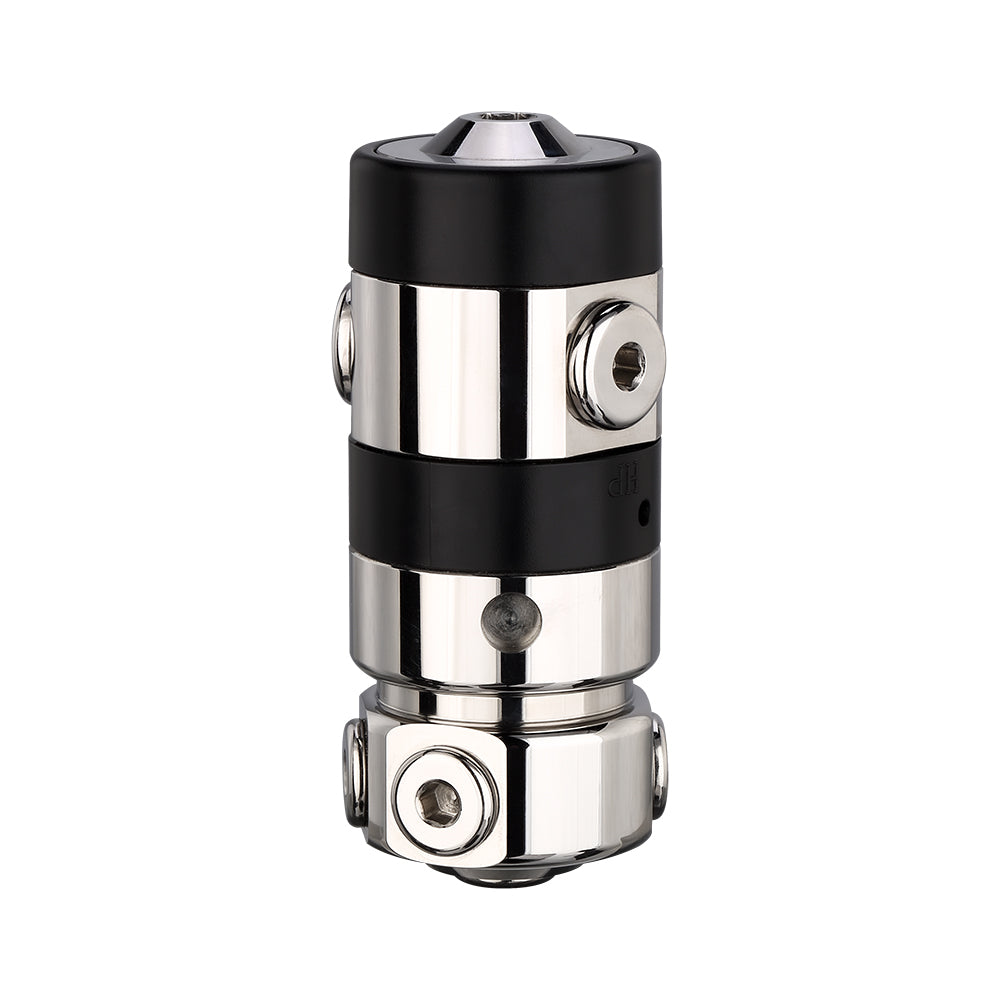

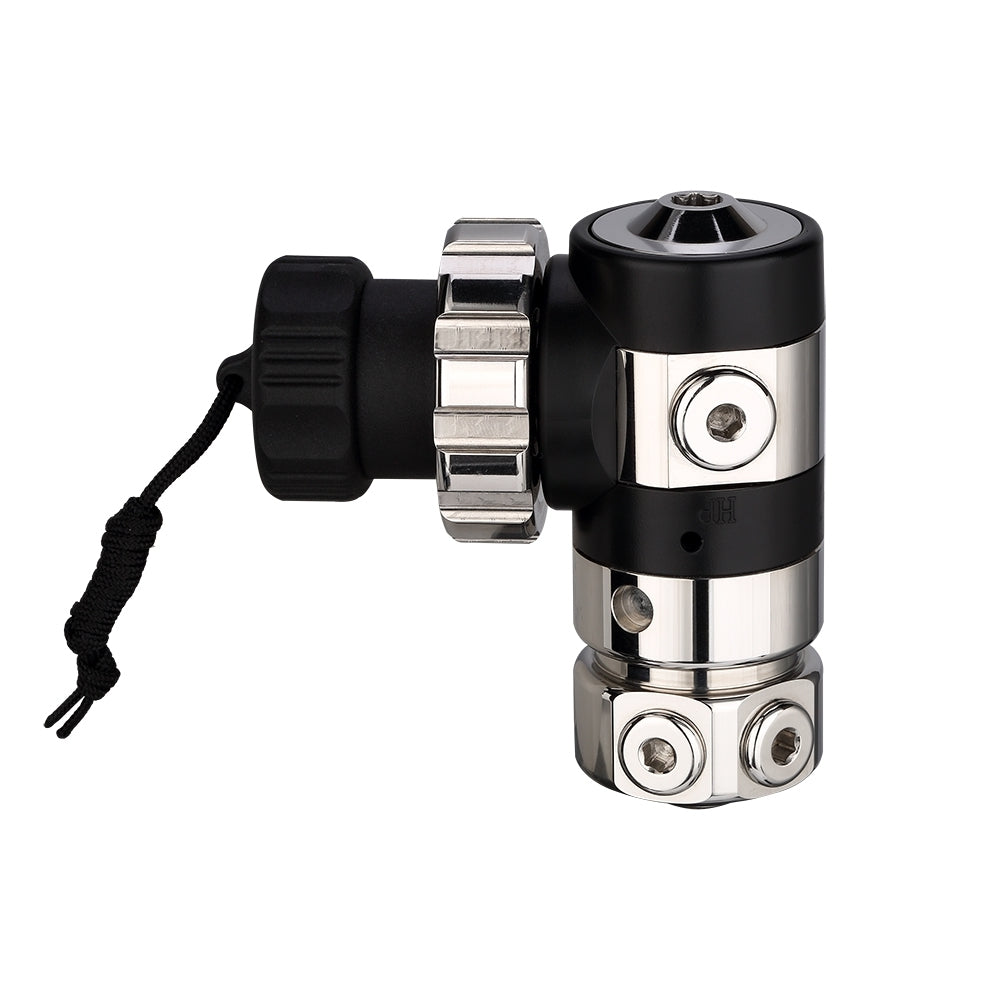

HotDive S2 1st Stage Technical Information:

- Balanced piston-type first stage regulator
- Connector: YOKE or Din
- LP ports swivel
- Intermediate pressure: (8.5-9.5 Bar).
- High pressure port: (7/16" 20W UNF-2B) x 2.
- Low pressure port: (3/8" 24W UNF-2B) x 5.
- Weight(oz/g): 21/595.
- Main materials: 316 stainless steel body, SUS springs.

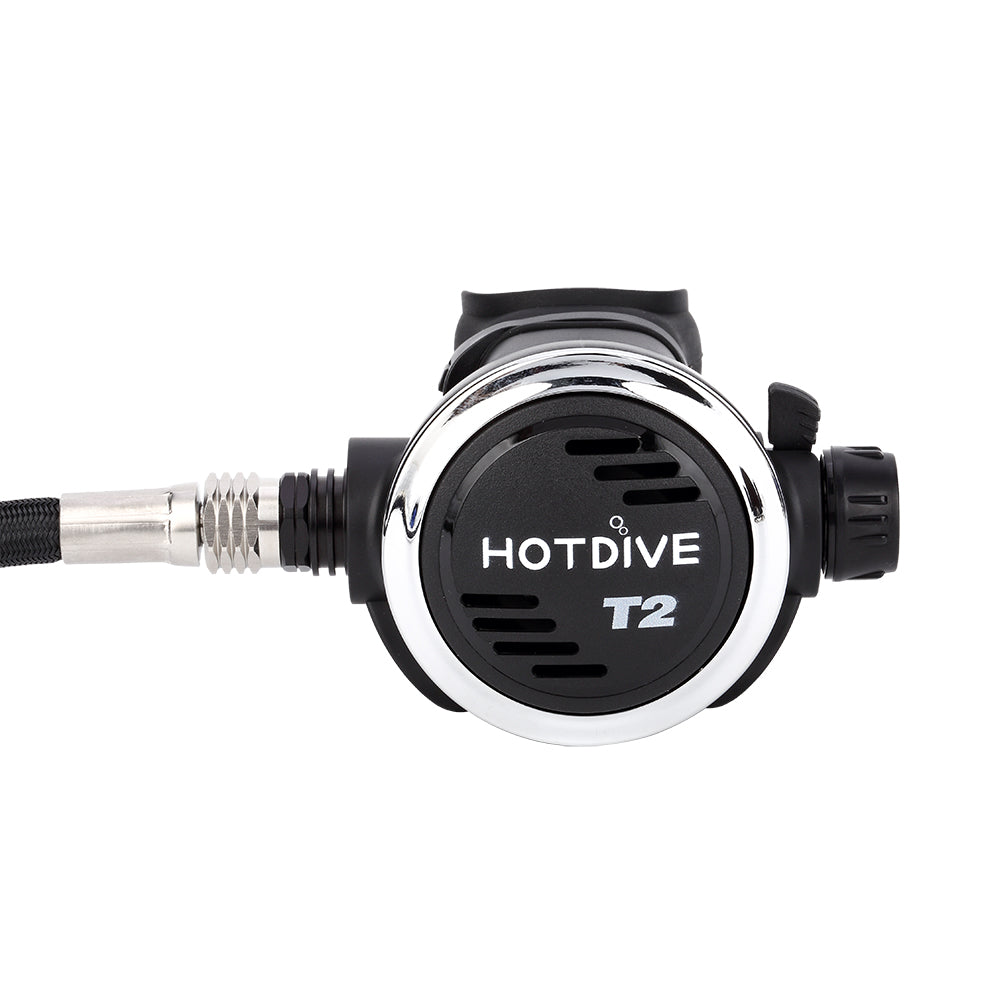

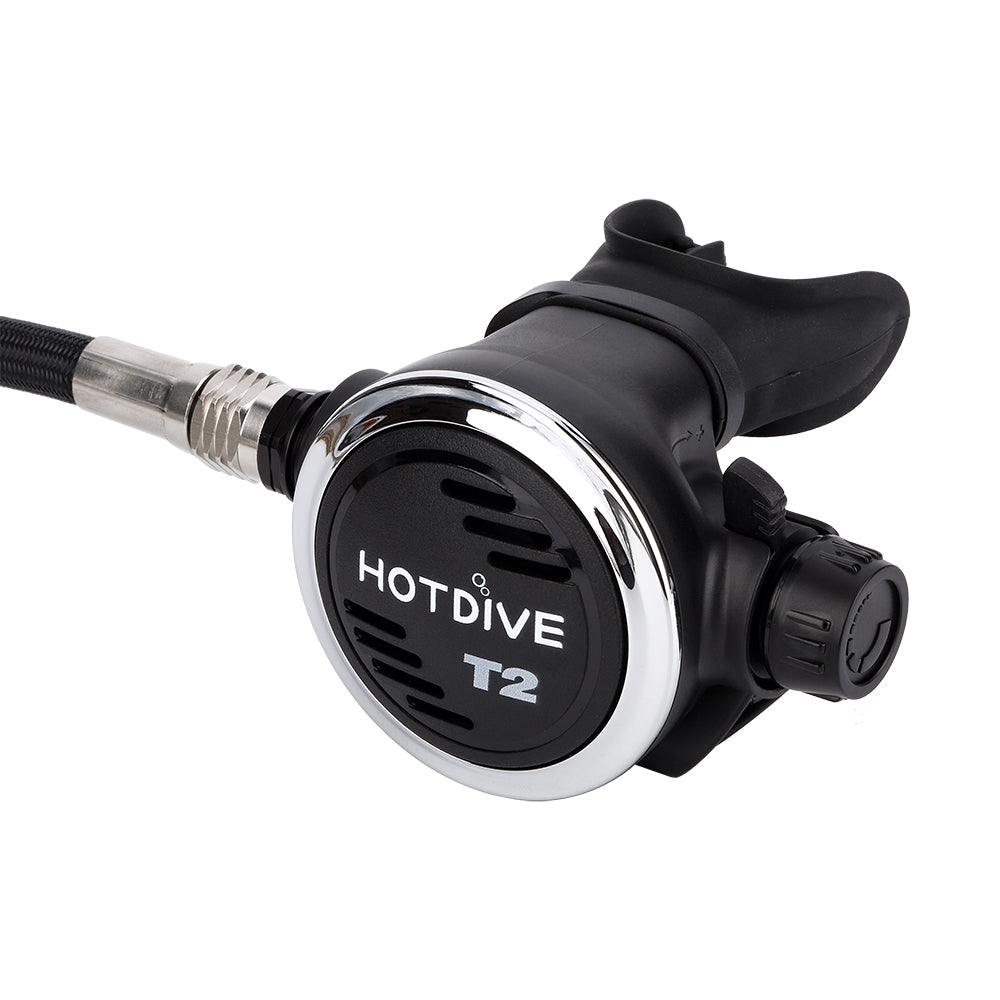

HotDive T2 2st Stage Technical Information:

Weight: 0.3kg
Package size: 32*10.5*10cm
Material: GF Enhanced PA+SS 316
Scuba Gear Technical Information:
- Balanced & adjustable second stage regulator
- Intermediate pressure: 10 Bar/150 PSI.
- Inhalation effort: 1.2-1.5 CIW (Column inches of Water)
- The pneumatically balanced design gives consistent gas pressure for easy inhalation
- Easy-grip dive/pre-dive switch avoids free at the surface and is easy to use with gloves.
- Adjustable design helps the diver fine-tune cracking pressure so breathing resistance matches the diver's personal preference.
- Second stage adjustment knob: Fine-tunes inhalation effort.
- Weight: 237g (0.52lb)
- Main materials: GF Enhanced PA, SUS 316 main body.
- Food grade silicone mouthpiece
- Customed with brand logo, Diving Equipment OEM & ODM.

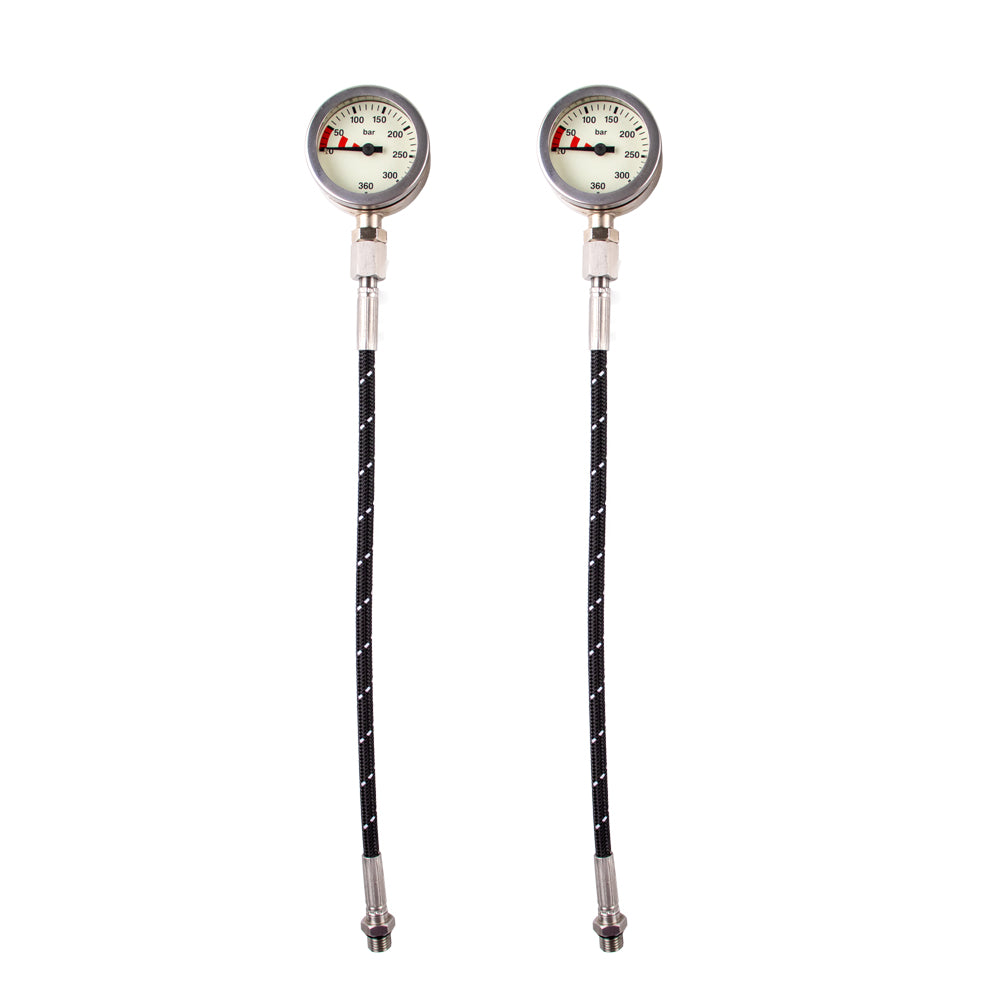

SPG 2010 MINI 2K Gauge Technical Information:

One piece brass body; Copper Beryllium spiral wound; Bourdon tube;

Polycarbonate transparent window; Plastic cover with loop for fixing; Graduation 400 BAR / 5000 PSI, full scale.

Graduation display:

Luminous easy to read dial design; Red zone from 0 to 50 BAR / 0 to 600 PSI; Increments 10 BAR / 100 PSI, all over the scale; Available in black dial with fluorescent needle and graduation numbers;

SPG + HP hose in compliance with EN 250 specifications.

Suggested use only by trained individuals and certified by a recognized Scuba Training Agency.

Suitable for HotDive S2 1st stage regulator.
